TENS 3000

SKU: NC89458

Billing Code: E0730*

*Responsibility for coding lies solely with the provider treating the patient. Suggested only.

Ease of operation of an analog unit with accuracy of a digital unit.

  • Features 3 modes, Timer, Safety and Amplitude cap. Amplitude cap is a transparent pivoting cap that closes over the amplitude knobs to help protect the user from power jolts from accidental knob movements.
  • Microprecessor technology gives exact dial performance.

Specs -

  • Dual Channel: Isolated between channels.
  • Pulse Amplitude: Adjustable, 0-80mA peak into 500 ohm load each channel.
  • Pulse Rate: Adjustable, from 2 to 150Hz.
  • Pulse Width: Adjustable, from 50-250 microseconds.
  • Modulation Mode:  Pulse rate is automatically varied in a cyclic pattern over an interval of nominally 10 seconds (in max 1150 Hz). Pulse rate decreases linearly over a period of 4 seconds from the control setting value to a value which is 40% less. The lower pulse rate will continue for 1 second. Then increase linearly over a 4 second period to its original value. The original pulse rate will continue for 1 second. The cycle is then repeated.
  • Burst Mode: Bursts occur twice every second. Pulse width (adjustable), frequency=100 Hz.
  • Wave Form: Asymmetrical Bi-Phasic Square Pulse.
  • Timer: 30 and 60 minutes or continuous.
  • Voltage: 0 to 40 V (Load: 500 ohm).
  • Max. Charge per Pulse: 20 micro-coulombs.
  • Power Supply: One 9-volt battery (alkaline, or nickel cadmium rechargeable).
  • Battery Life: Approx. 50 hours at nominal settings.
  • Size: 95(H) x 65(W) x 23.5(T) mm.
  • Weight: 115 grams (battery included).

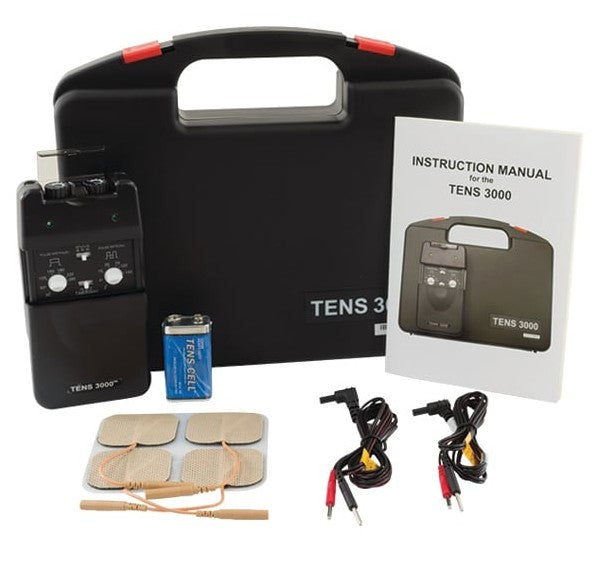

  • System includes device, lead wires, four self-adhesive reusable electrodes, 9V battery, hard plastic carrying case and instruction manual.
